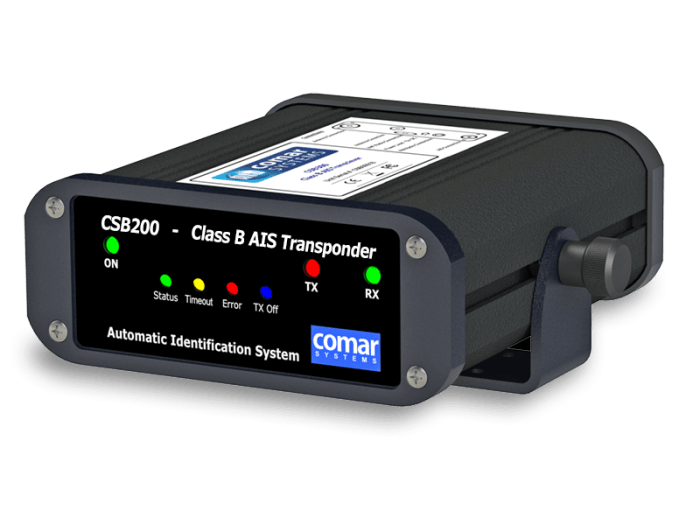

CSB200 CLASS ‘B’ AIS TRANSPONDER

MODEL NUMBER: CSB200

Class ‘B’ AIS Transponder designed specifically for small commercial boats, fishing boats and leisure markets

SKU: 001-1010 Category: Tags: ,

Product Description

OVERVIEW – CSB200 AIS Transponder

The CSB200 is a compact and rugged AIS Transponder, designed for the demands of the small commercial boat, fishing boat and leisure markets. It meets the Class ‘B’ standard that allows vessels that are not required to fit Class ‘A’ units to voluntarily fit an AIS Transponder. When connected to an external VHF antenna and a GPS antenna (not supplied), the CSB200 will transmit its own vessel position and data and receive information from other AIS vessels, shore stations and navigational aids within VHF range.

The unit is initially programmed by the user with the supplied software over a USB interface. The CSB200 is compatible with a range of computer‑based navigation programs and chart plotters that can accept AIS data sentences over a NMEA 0183 or NMEA 2000 connection.

SPECIAL FEATURES

  • NMEA 0183 and NMEA 2000 compatible
  • Automatic transmission of vessels own position, speed and heading to other vessels within VHF range
  • A method of monitoring the position, speed and heading of other AIS vessels within VHF range
  • The ability to plot the progress, changes in heading and speed of other AIS vessels on a PC or Chart Plotter
  • Transmitter off facility to conserve power, or for covert use

APPLICATIONS

  • Small commercial boat, fishing boat and leisure markets.
  • Meets the Class ‘B’ international standard that allows vessels that are not required to fit Class ‘A’ transponders to voluntarily (or otherwise) fit an AIS transponder

RELATED PRODUCTS & SYSTEMS



PHYSICAL

  • Weight: 600 g
  • Dimensions: L 135 x W 128 x H 50 mm (excl. connectors & bracket)
  • Mounting: To flat surface with supplied trunnion mount
  • Connections:
    • Power: 2-core captive cable, 1 m
    • Antenna: SO239 UHF Connector
    • GPS Antenna: TNC Connector
    • Data In/Out: 9-pin D-sub Connector
    • NMEA 2000: 5-pin; 2x Data; 2x 12 V dc Power; 1x Shield
    • USB: USB 2.0 Type B Connector
  • Construction: Extruded aluminium alloy
  • Finish: Black paint

ELECTRICAL

  • Power Supply: 12 V dc (9.6 - 15.6 V dc); 500 mA; 4 W nominal
  • Peak Power: 2 A
  • Data output: NMEA 0183: 38,400 and 4,800 Baud

OPERATIONAL

  • VHF Receiver: Transmitter x1; Receiver x2
  • VHF Antenna Impedance: 50 Ω
  • Frequency Range: 025 – 162.025 MHz in 25 kHz steps
  • Channel Bandwidth: 25 kHz
  • Channel Steps: 25 kHz
  • Display: Discrete Indicator LEDs
  • Data Received: Class ‘A’ and Class ‘B’ AIS Transmissions • Safety messages • Aids to Navigation
  • Data Transmitted: Name of Vessel • MMSI Number • Position • Speed (SOG) • Course (COG) • Type of Vessel • Call Sign • Heading • Vessel Dimensions
  • GPS Antenna Impedance: 50 Ω
  • Indicators: On, TX, RX, Status, TX Timeout, Error, TX Off

ENVIRONMENTAL

  • IP rating: IP40
  • Operating temp: -25°C to +55°C
  • Compass: Safe Distance 50 cm

APPROVALS

IEC 62287-1 Class B; EN-60945; IEC 61162-1; IEC 61108-1; EN 301 843-1 v2.1; EN 50383; EN 60950-1; ITU-RM.1371-1; CE European; BSH Germany

ADDITIONAL INFORMATION

  • Supplied: CSB200 Transponder; trunnion bracket; power, data and programming cables; installation software
  • Required: GPS Receive Antenna AG100 for AIS re-transmission of Vessel Position
  • Required: AIS Antenna
