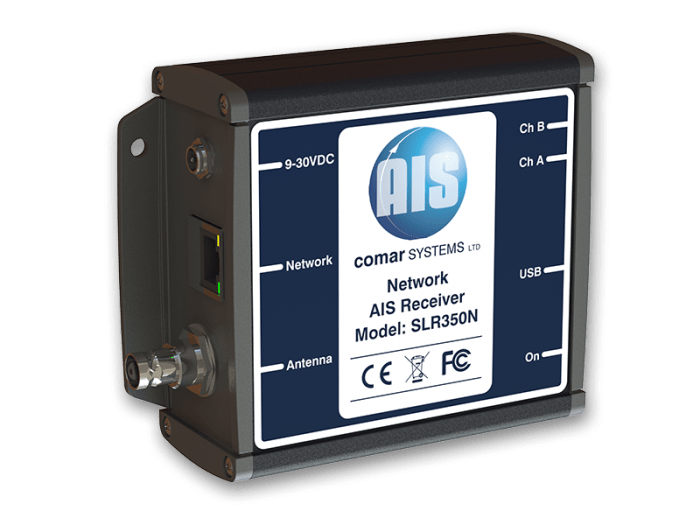

SLR350N NETWORK AIS RECEIVER

Connected to a PC, via the industry standard RJ45 Ethernet connector, the SLR350N enables AIS data to be viewed directly, or shared on a local network. The unit can also be mounted at a remote location and AIS data sent via the Internet to a fixed IP address for use on a dedicated server.

SKU: 001-1042 Category: Tag:

Description

Overview

The Comar SLR350N is a Network AIS Receiver for Coastal Monitoring Applications. Connected to a PC, via the industry standard RJ45 Ethernet connector, the SLR350N enables AIS data to be viewed directly, or shared on a local network. The unit can also be mounted at a remote location and AIS data sent via the Internet to a fixed IP address for use on a dedicated server.
The SLR350N has been specifically designed for use by the professional market and uses the well proven and internationally specified Comar high sensitivity dual channel parallel receiver.

Typical Uses:

  • Monitoring of shipping by Government bodies
  • Traffic management at local port approaches
  • Assistance in Search and Rescue operations
  • Location of ships for local  Tug/Supply operators
  • Analysis of shipping in specific areas.
  • Monitoring of fishing zones
  • Feeding Internet AIS tracking sites

COMAR SLR350N RECEIVER PROVIDES:

  • A method of monitoring the position, speed and heading of AIS vessels within VHF range.
  • Decoding of Class A, Class B, Aids to Navigation, SARTS and all other AIS message types.
  • Designed to comply with IEC 61993-2.

INFORMATION RECEIVED:

  • Name of Vessel
  • MMSI Number
  • Position
  • Speed (SOG)
  • Course (COG)
  • Type of vessel
  • Call sign
  • Heading
  • Rate of Turn
  • Navigational Status
  • Vessel Dimensions
  • Destination



  • Power Supply Range: 9 – 30 V dc
  • Power Consumption: 300 mA @ 12 V dc
  • Output Baud Rate: 38,400 Baud (38.4 Kb)
  • Format: ITU/ NMEA 0183
  • Output Message: VDM
  • Receiver Frequency:
    Channel A 161.975 MHz
    Channel B 162.025 MHz
  • Channel Spacing: 25 KHz
    Sensitivity: > -112 dBm @ 20% MER
  • Demodulation: GMSK
  • Data Rate: 9600 Baud Antenna Impedance: 50 Ω
  • Dimensions: L 130 mm W 105 mm H46 mm
  • Weight: 600 g
  • Mounting: 4 mounting holes in end plates
  • Connectors:
    Antenna: BNC
    Ethernet Port: RJ-45
    USB Port: Type B
  • Power:
    2. 1mm Phono plug
  • Designed to Meet: IEC 61993-2;  IEC 60945; EN 6100-6-1 & 2; FCC part 15
