AV300 Fibreglass VHF Antenna with Universal Base

The AV300 Commercial Marine VHF Antenna is made from a GRP fibreglass construction, capable of withstanding the worst elements at sea or on land.

SKU: 001-1046 Category:

OVERVIEW


The AV300 Commercial Marine VHF Antenna is made from a GRP fibreglass construction, capable of withstanding the worst elements at sea or on land. All the antennas in this series offer excellent bandwidth/VSWR characteristics within the frequency range of 156 – 162 MHz. All antennas in this series are suitable for GMDSS installations.

Note: This product was previously known as the AIS-GPA-X

FEATURES


  • White, tapered fibreglass tube
  • Cast aluminium integral base with whiteglass finish and ‘U’ bolts
  • Mounts on both horizontal and vertical poles
  • 0.3m of RG-213 cable fitted with ‘N’ jack

APPLICATIONS


  • Installation on board commercial vessels
  • Shoreside monitoring stations where a rugged AIS antenna is critical

RELATED PRODUCTS


  • AV100 – Stainless Steel Whip Antenna
  • AV400 – Commercial Antenna for AIS

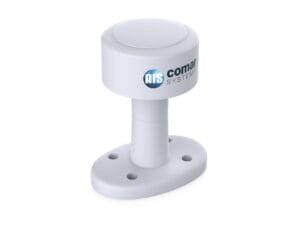

  • AG100 – GPS Antenna

PHYSICAL


  • Weight: 570 g approx. Shipping weight: 900 g approx.
  • Dimensions: 1.5m Total length
  • Mounting: Horizontal / Vertical Pole*
  • Construction: GRP Fibreglass, brass element

ELECTRICAL


  • Antenna
  • Impedance: 50 Ω
  • Polar Radiation: 360° Omnidirectional
  • Polarization: Vertical
  • Power Rating: 150w
  • Cable: 10 Metre RG-213 as standard
  • Connections: BNC connector

OPERATIONAL


  • Frequency range: Spot Freq set Between 156-162MHz
  • Gain: Unity (Over half wave dipole)
  • VSWR: <1.5:5 at resonant point
  • Bandwidth: +/- 5% @ 2:1

ADDITIONAL


  • * Supplied complete with pole mounting bracket & 10m cable
