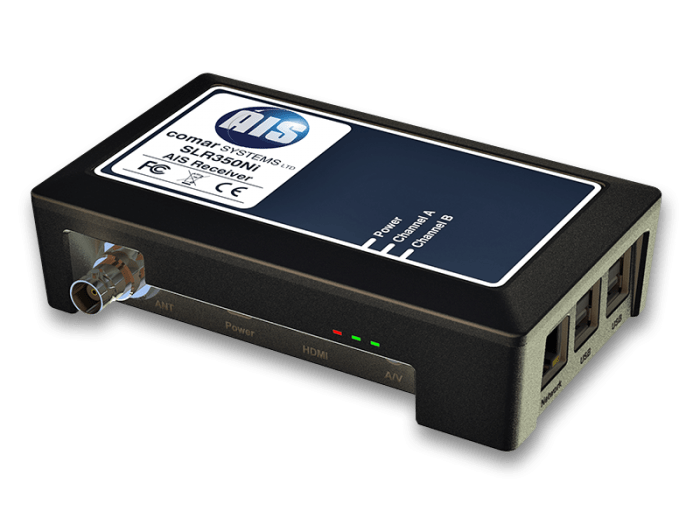

SLR350Ni WiFi Ethernet AIS Receiver

SLR350Ni INTELLIGENT AIS RECEIVER with WIFI

MODEL NUMBER: SLR350Ni

AIS receiver with WiFi and Ethernet for coastal monitoring applications. With embedded micro-computer. Ideal for creating a complete networked port monitoring solution.

SKU: 001-1047 Category: Tags: ,

Product Description

OVERVIEW

The Comar SLR350Ni with WiFi is an intelligent AIS receiver interfaced to a Raspberry Pi™ 3 computer. The SLR350Ni is designed for coastal monitoring applications and is capable of filtering and processing AIS data and forwarding it across a network. In this way, several SLR350Ni units can be used to form a complete networked monitoring solution for monitoring a port and its approaches.

The unit has both WiFi and Ethernet connectivity, as well as 4 USB ports and an HDMI connector for a monitor display. What makes the SLR350Ni different from other receivers is that it can be deployed in any AIS network using proprietary software specific to that network and is shipped ‘bare bones’.

The SLR350Ni is designed for use by the commercial market and uses Comar’s well proven and internationally specified high sensitivity dual channel parallel receiver.

The SLR350Ni from Comar Systems: Quite possibly the most flexible and powerful AIS receiver available today.

SPECIAL FEATURES

  • WiFi and Ethernet connectivity
  • Built-in Raspberry Pi™ 3 Microcomputer
  • Highly configurable to suit any AIS network (additional software required)
  • Built-in USB ports for local monitoring
  • Built-in HDMI port for connecting a display monitor
  • Built-in micro-SD card slot for storing the OS and supporting software
  • Optional internal GPS receiver module

APPLICATIONS

  • Shoreside monitoring of shipping by Government bodies
  • Managing traffic at local port approaches
  • Assisting in Search and Rescue (SAR) operations
  • Locating ships for local tug/supply operators or for security operations
  • Analysing shipping in specific areas
  • Monitoring fishing zones
  • Feeding data to AIS vessel tracking websites
  • Automatic Datalogging of AIS data over a time period

PHYSICAL

  • Weight: 400 g
  • Dimensions: L 135 mm W 80 mm D 39 mm
  • Mounting: To flat surface; 2 holes in case bottom
  • Connections: Micro USB (Power);RJ45 Ethernet 10 / 100 Base-T; 4x USB 2.0 type B socket; BNC Coaxial to antenna; Micro-SD card slot
  • Construction: Plastic
  • Finish: Black plastic, textured

ELECTRICAL

  • Power Supply: 5 V dc; 900 – 1200 mA typical
  • Antenna Impedance: 50 Ω
  • USB Power: 100 mA each port (max)

OPERATIONAL

  • Frequency: Channel A 161.975 MHz; Channel B 162.025 MHz
  • Sensitivity: < -112 dBM
  • Microcomputer: Raspberry Pi™ 3 (1.2 GHz 64bit quad-core ARM v8 CPU)
  • WiFi 802.11n
  • Display: 3 Indicator LEDs (Ch A; Ch B; Power ON)
  • Data Types Received: Name of Vessel; MMSI Number; Position; Speed (SOG); Course (COG); Type of Vessel; Call Sign; Heading; Rate of Turn; Navigational Status; Vessel Dimensions; Destination and others

ENVIRONMENTAL

  • IP rating: IP40
  • Operating temp: -15°C to +55°C
  • Compass: Safe Distance 50 cm

APPROVALS

IEC 61993-2; IEC 60945; EN 61000-6-1 & 2; FCC part 15

ADDITIONAL INFORMATION

  • Supplied: SLR350Ni receiver ‘bare bones’ without software
  • Option: Internal GPS module installed via GPIO port

ACCESSORIES

  • GPA-AIS Base station antenna with Ground Plane: SKU 001-1041
  • AIS-COM Commercial GRP Antenna: SKU 001-1040
