R220U Dual Channel AIS Receiver with NMEA & USB Output

The R220U is a high performance, dual channel AIS receiver, with outputs for both NMEA 0183 and USB. The R220U reads and decodes all AIS messages that are specified and transmitted by AIS Class A and Class B transponders.

SKU: 001-1035 Category: Tag:

OVERVIEW


The R220U is a high performance, dual channel AIS receiver, with outputs for both NMEA 0183 and USB. The R220U reads and decodes all AIS messages that are specified and transmitted by AIS Class A and Class B transponders, AIS SARTs and Aids to Navigation. The AIS targets together with all the static and dynamic information received can be displayed on any AIS compatible Chart Plotter or PC navigation program.

The unit can be operated in various modes to suit your application. If connected solely by a USB cable to a PC, the unit is powered by the PC and data is transmitted via the USB cable providing a compact solution. Whilst powered by the USB, NMEA 0183 output is also available from the data port. NMEA 0183 Input from a GPS can also be connected via the data port which is multiplexed with the AIS data to provide position information to the PC.

Connecting the unit to external 12/24VDC will automatically power the device from the boat’s batteries and provide both USB and NMEA 0183 data.

FEATURES


  • Dual Parallel AIS Receiver
  • Power & channel LEDs
  • USB 2.0 compliant
  • Low power consumption
  • Compact design
  • USB or 12/24 volts dc powered
  • NMEA 0183 VDM output
  • Built in NMEA multiplexer

APPLICATIONS


  • A low cost method of monitoring the position, speed and heading of other vessels within VHF range
  • Reception from both Class A and Class B vessels, AIS SARTS plus Aids to Navigation (AtoN)
  • Compact design and simple installation

RELATED PRODUCTS


R400N – Network AIS Receiver with Ethernet capability
R400NG – Network AIS receiver with Ethernet & GPS capability

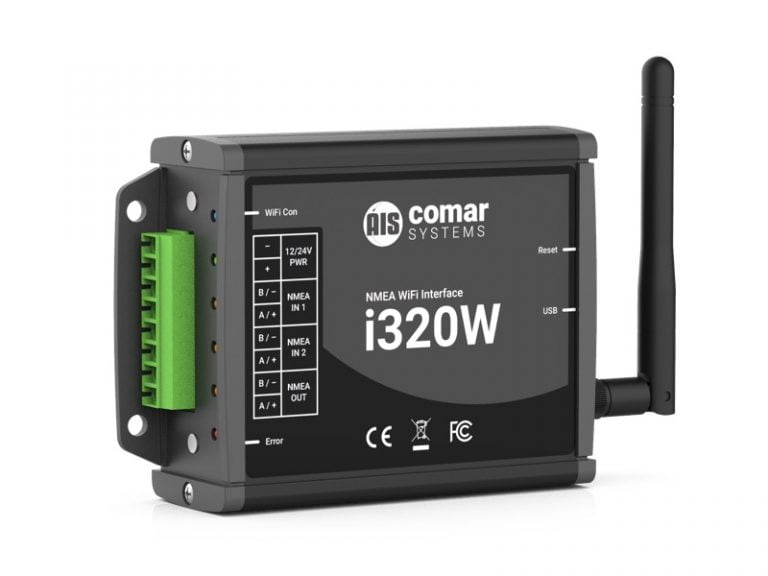

i320W – Bidirectional NMEA WiFi Interface

Note: The R220U was previously known as the R200U. The product was upgraded to feature a larger enclosure, however the product functions remain unchanged.
