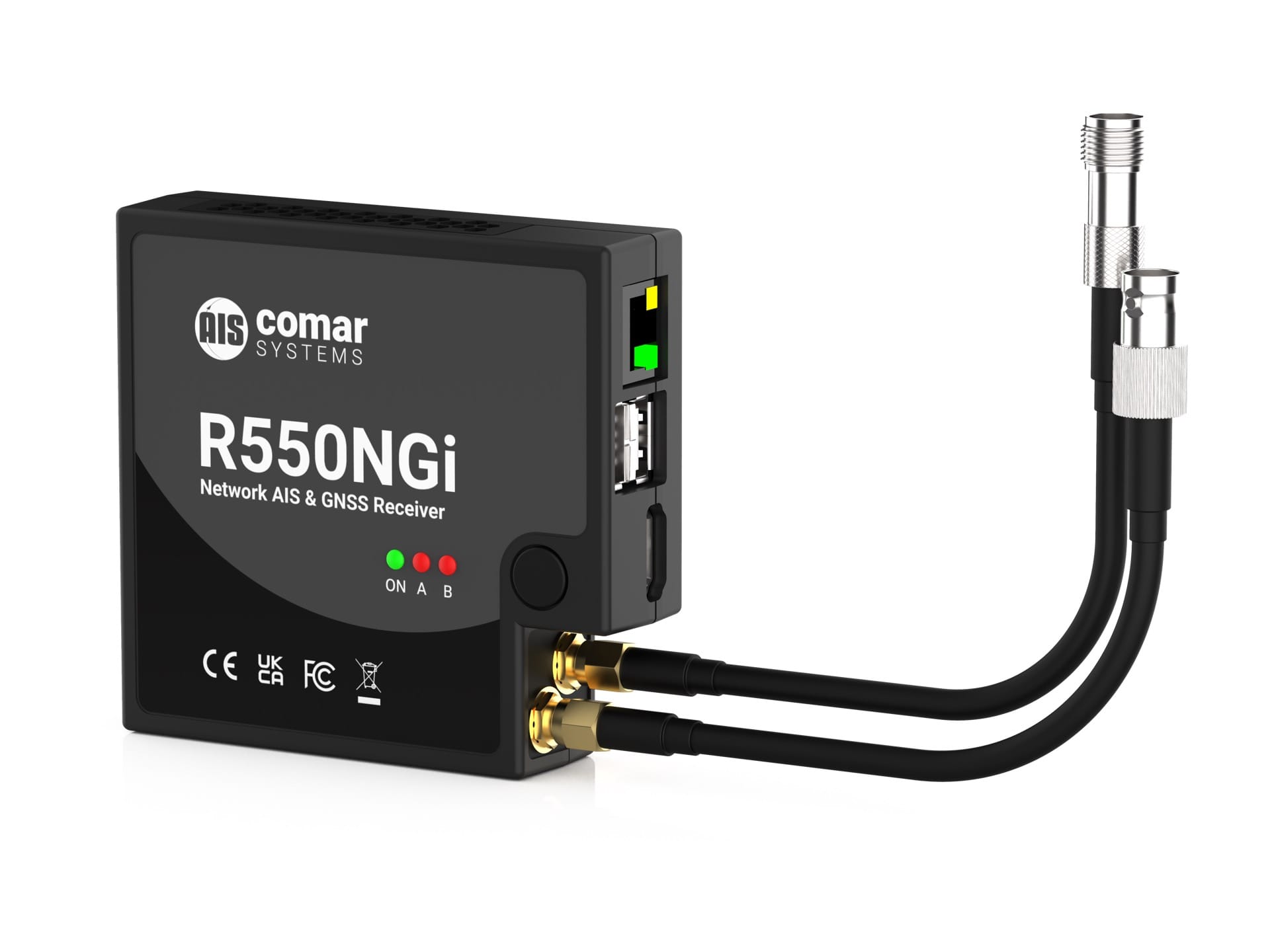

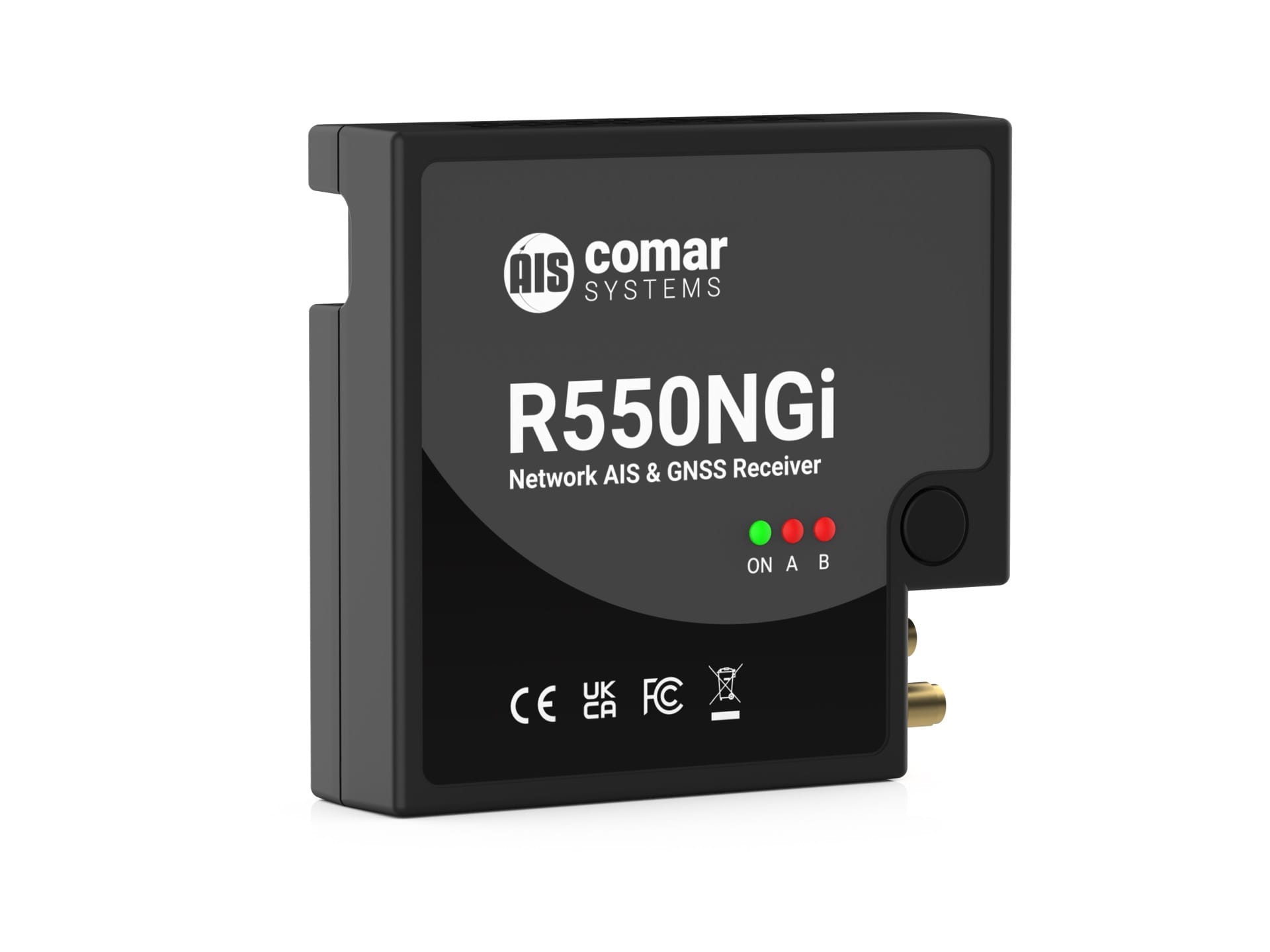

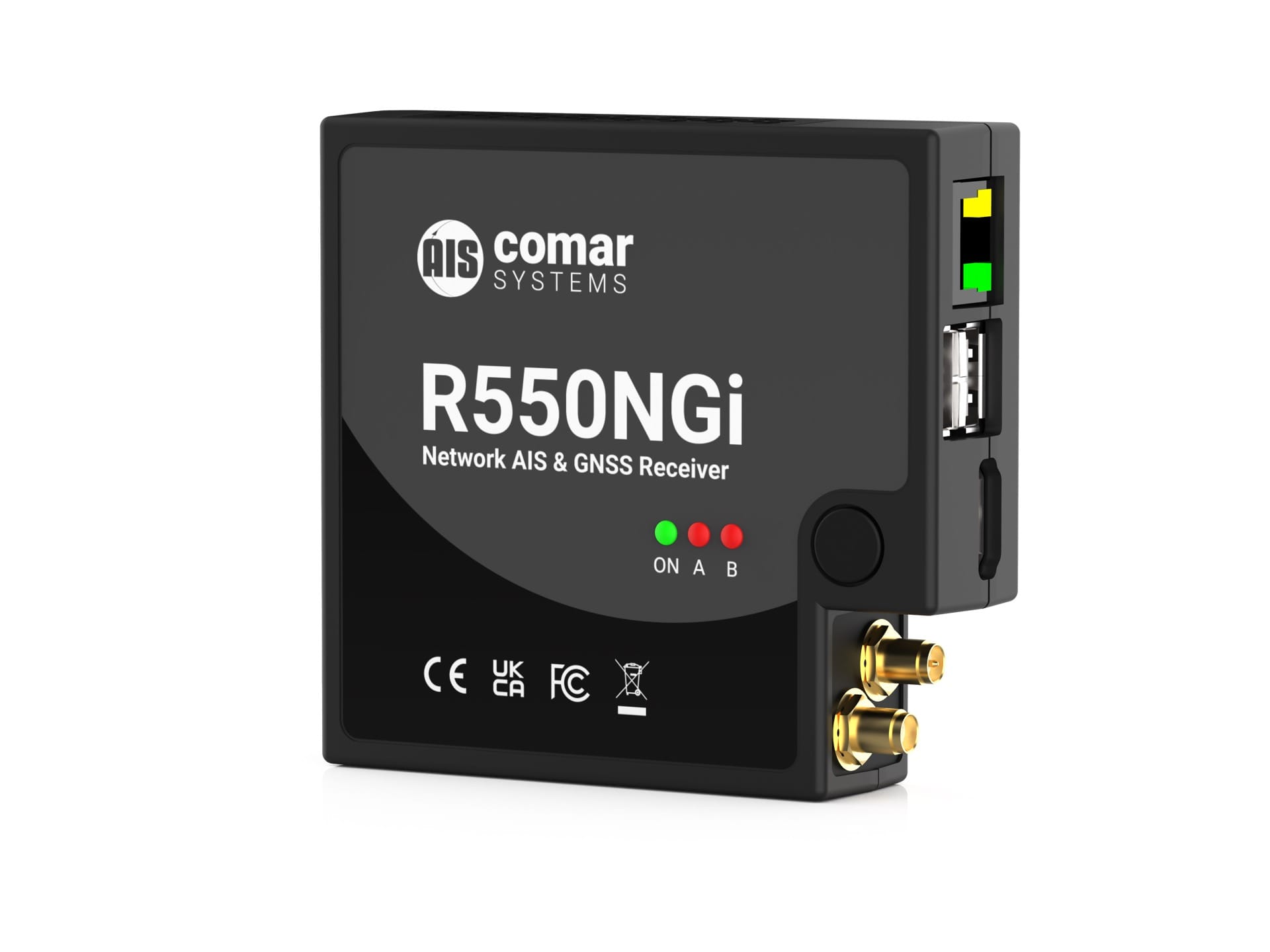

R550NGi INTELLIGENT NETWORK AIS & GPS RECEIVER WITH Wi-Fi
Designed for coastal monitoring applications and is capable of filtering and processing AIS & GNSS data and forwarding it across a network
Click and swipe to rotate
OVERVIEW
The Comar R550NGi is an AIS & GNSS receiver (Supporting GPS & GLONASS) interfaced to an ARMv8 microcomputer. Designed for coastal monitoring applications, the R550NGi is capable of filtering and processing AIS and GNSS data and forwarding it across a network. Multiple R550 Series units can be deployed to form a complete networked monitoring solution for ports and their approaches.
The unit features both Wi-Fi and Ethernet connectivity, along with two USB-A host ports and an HDMI connector for direct display output. Unlike conventional receivers, the R550NGi can be deployed within any AIS network using proprietary software specific to that network.
Designed for commercial applications, the R550NGi incorporates Comar’s proven high-sensitivity dual-channel parallel AIS receiver alongside a commercial-grade GNSS receiver.
The R550NGi from Comar Systems: Quite possibly the most flexible, compact and powerful AIS and GNSS receiver available today.
FEATURES
- Designed for commercial land-based monitoring of maritime traffic
- Ideal for feeding vessel tracking data to a website or vessel monitoring server
- Ethernet & Wi-Fi network connectivity
- Industry-grade dual-channel AIS receiver with integrated GNSS receiver
- Supplied with Comar Connect AIS & GNSS data forwarding software
- Built-in microcomputer with quad-core ARM Cortex-A72 processor for on-board data processing
- 16GB eMMC for operating system and software storage
- Built-in HDMI port for display monitor output
- 2 × USB-A host ports
- Bluetooth 5.0 enabled
- Low power consumption via USB-C input
APPLICATIONS
- Shore-based monitoring of shipping by government authorities
- Managing vessel traffic at port approaches
- Supporting search and rescue operations
- Locating vessels for tug, supply, or security operations
- Analysing vessel activity in defined areas
- Monitoring fishing zones
- Feeding AIS data to vessel tracking websites
