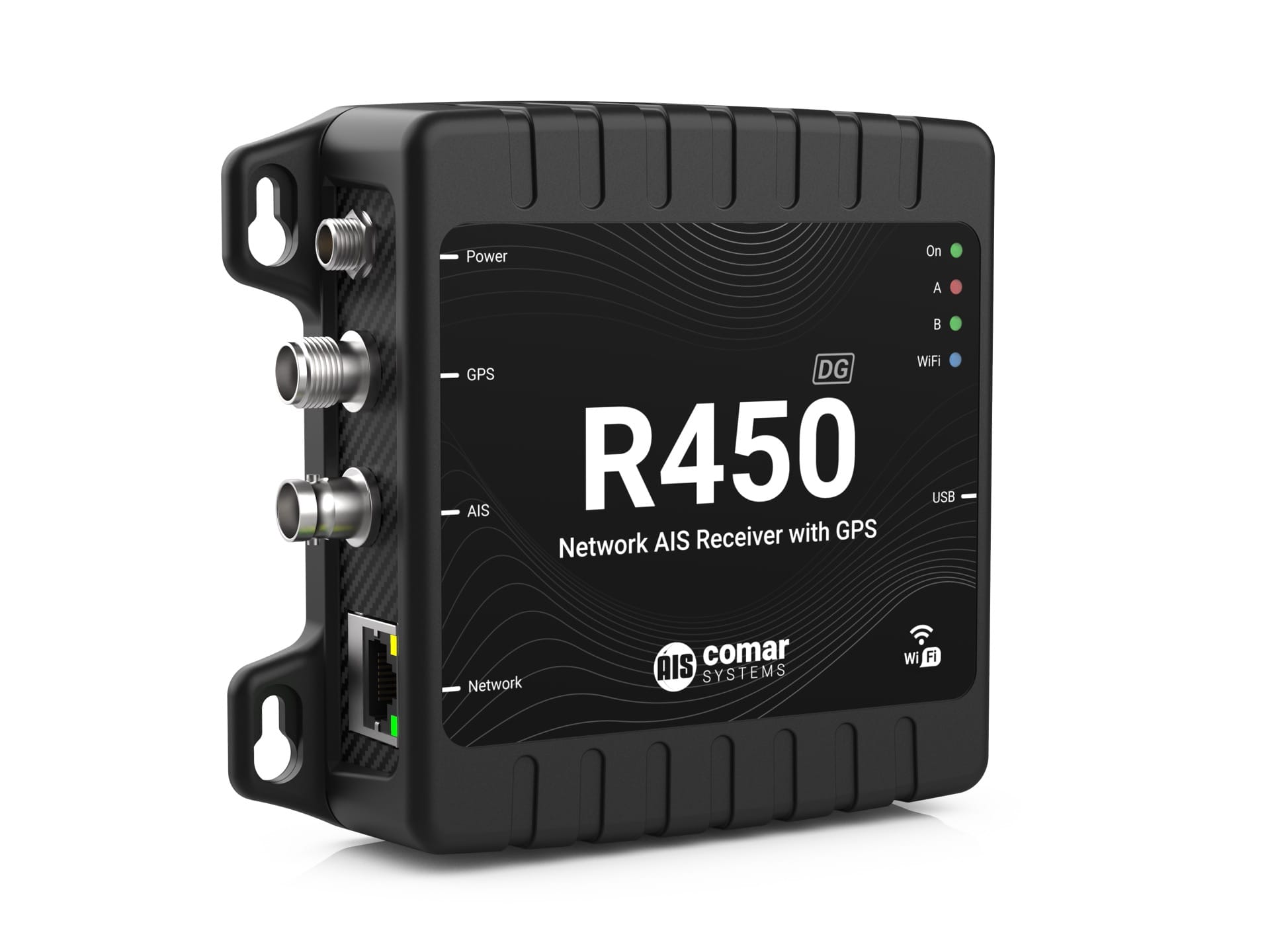

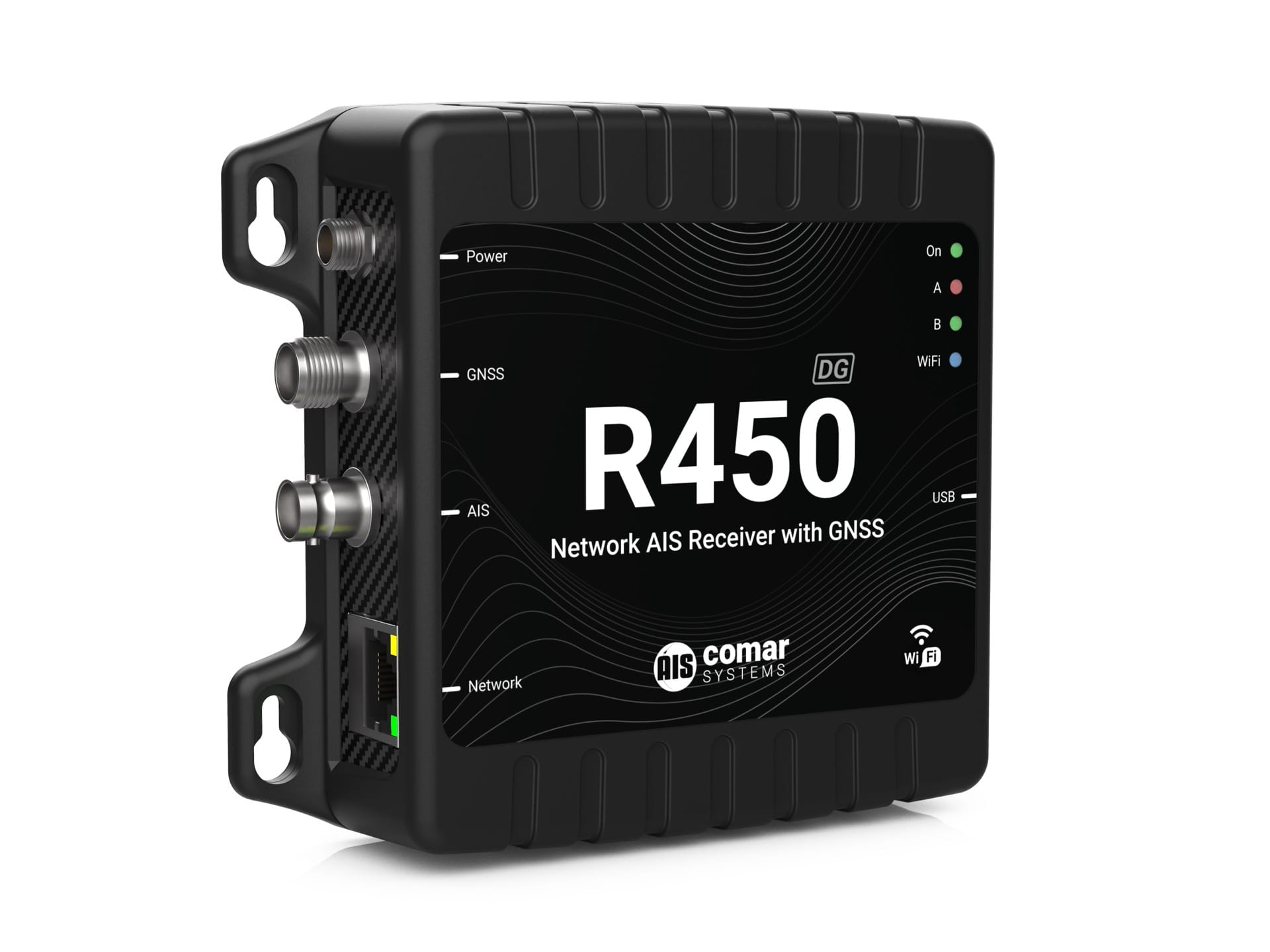

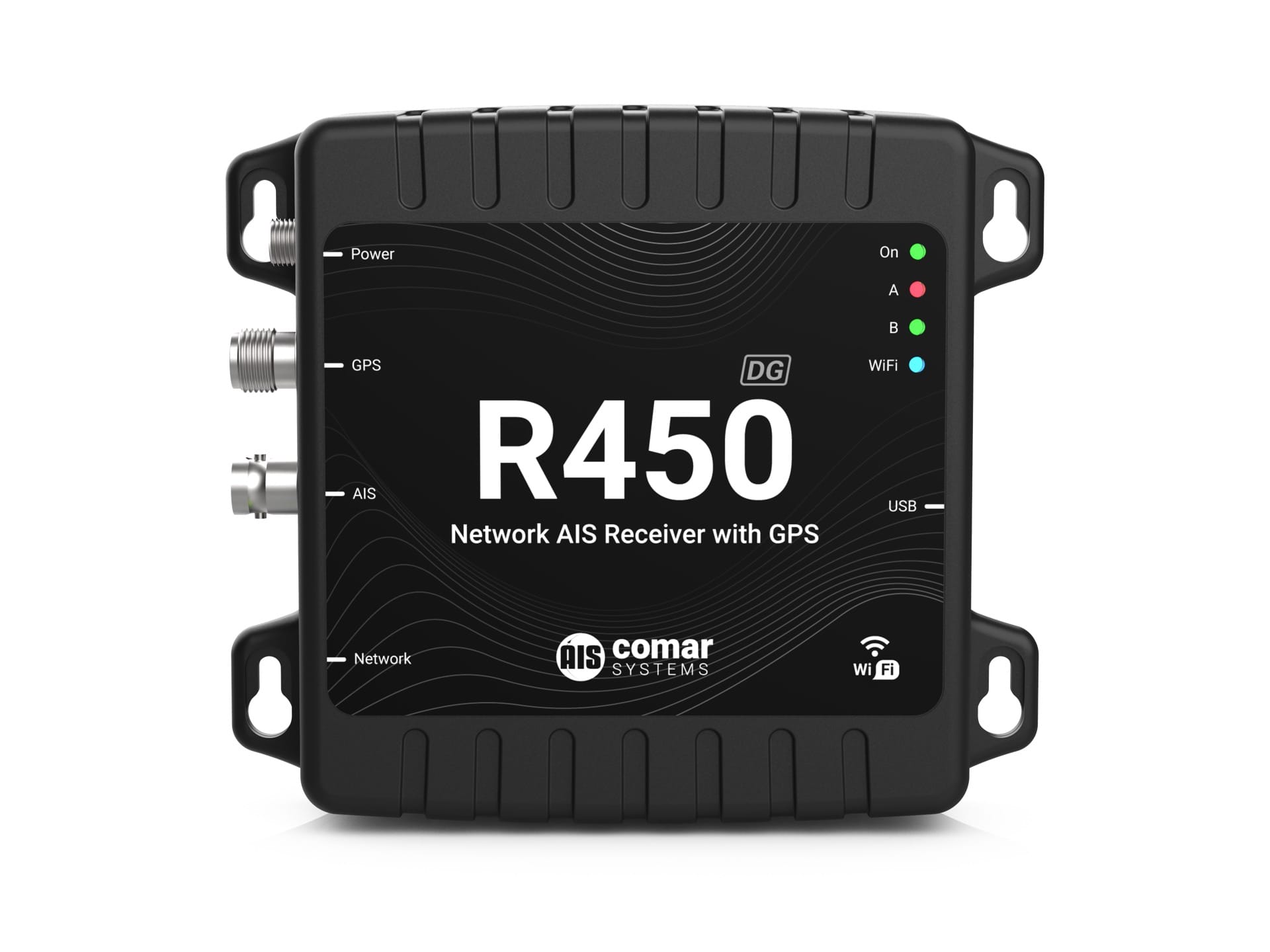

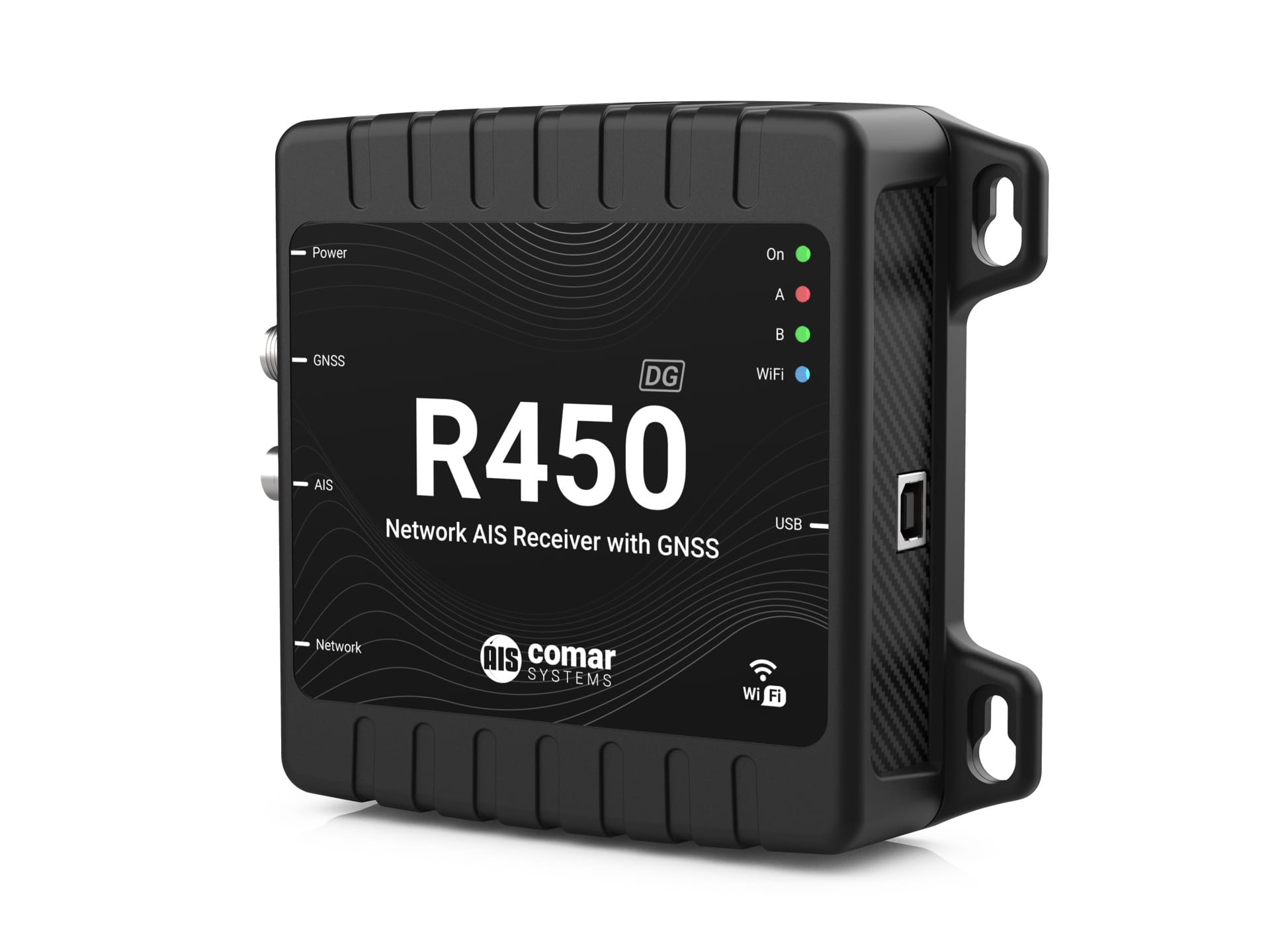

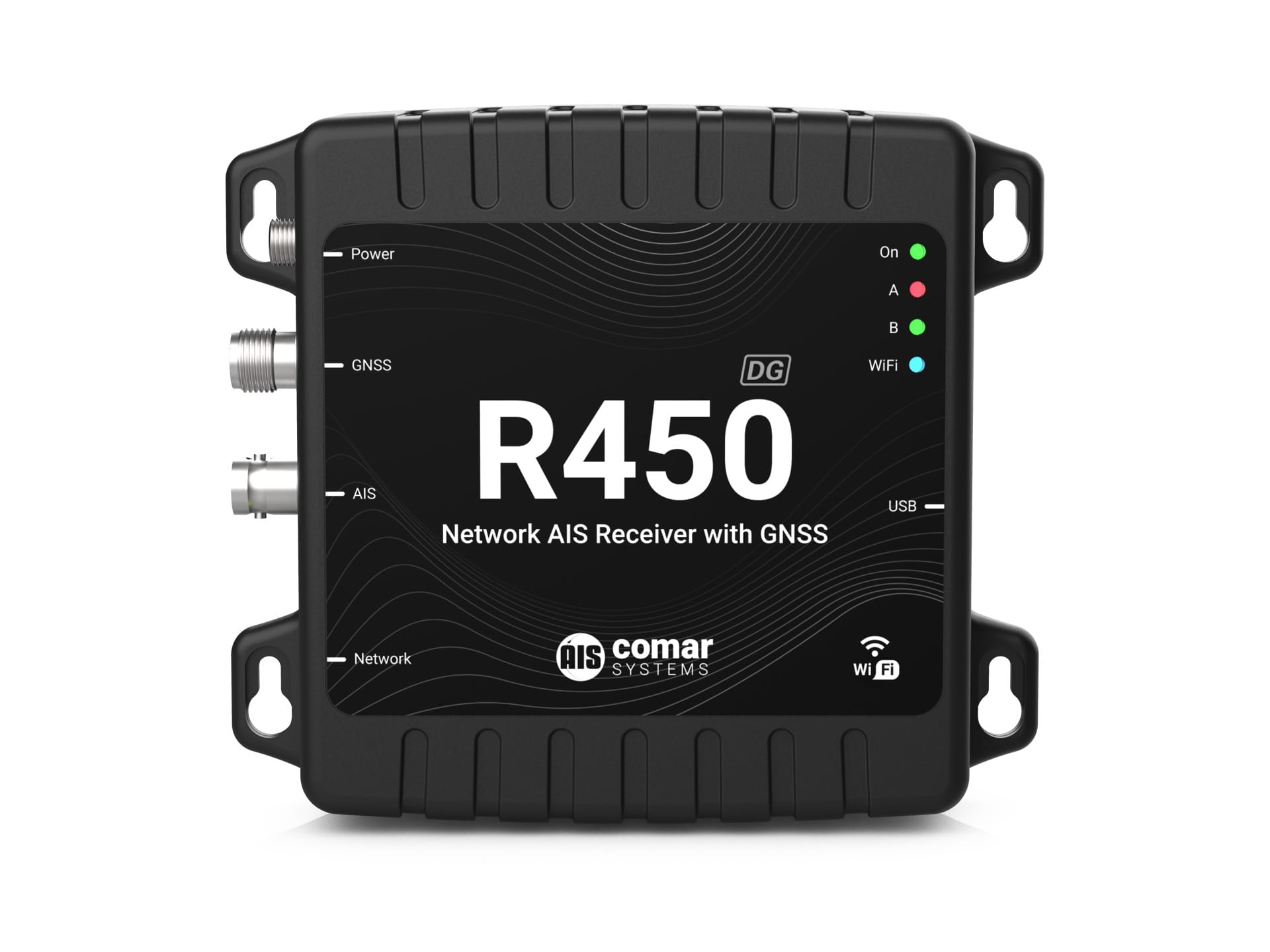

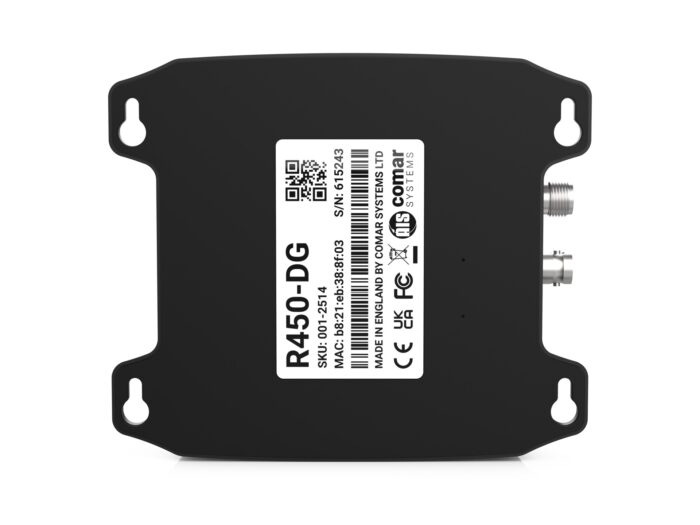

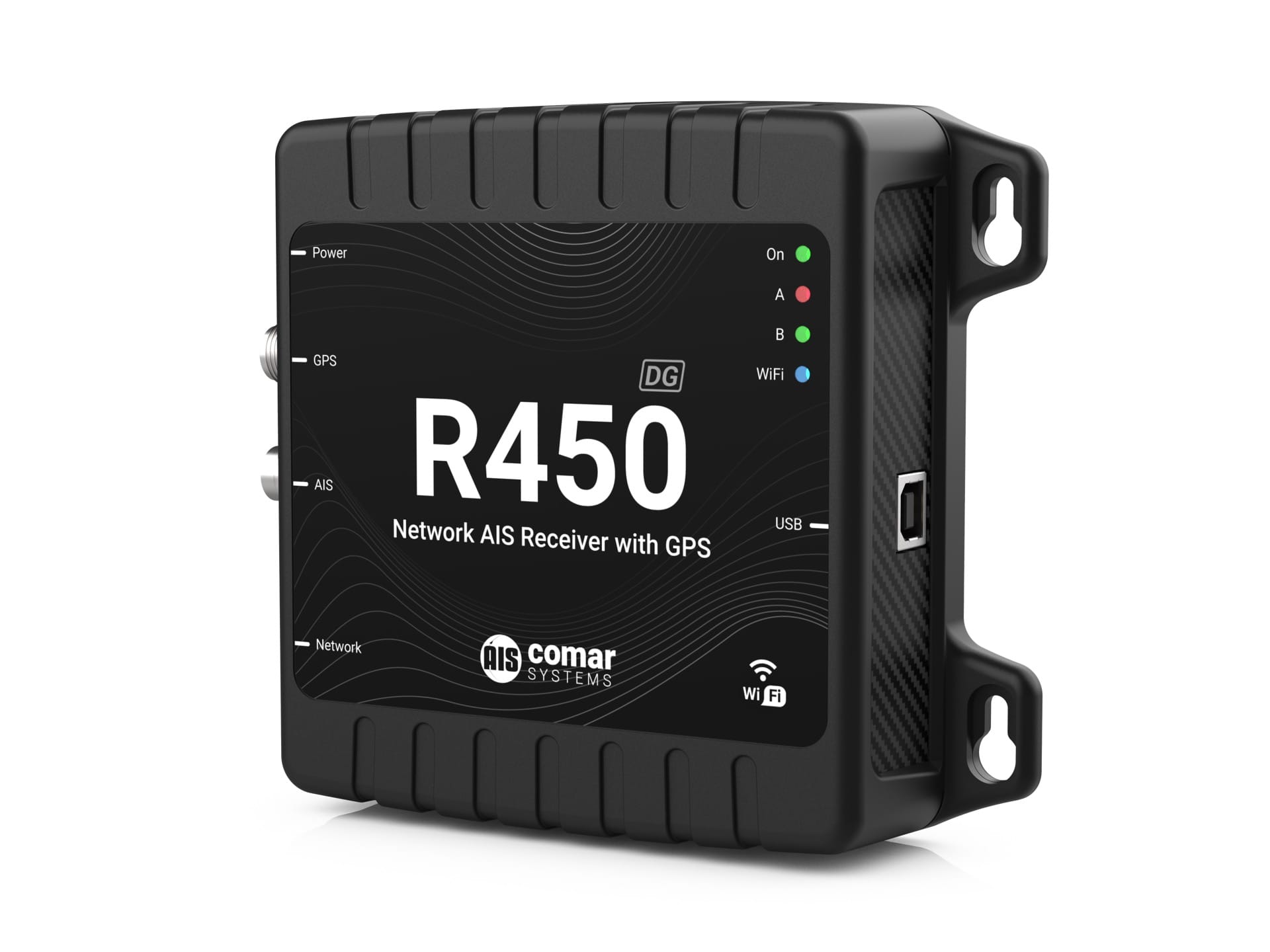

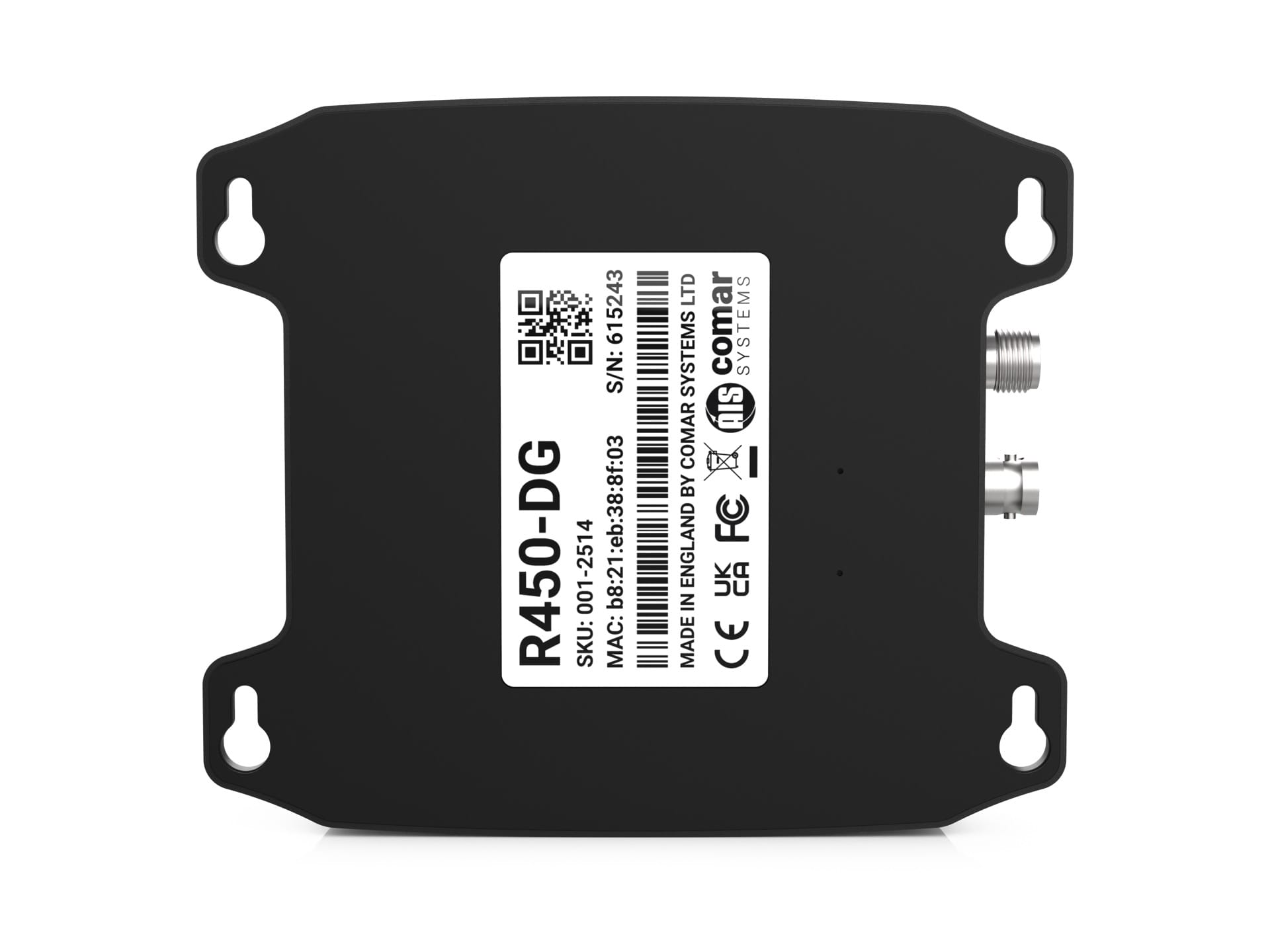

R450-DG Network AIS Receiver with Ethernet, WiFi & GPS
The R450-DG is a professional-grade AIS receiver with integrated GPS receiver, designed for shoreside monitoring of vessel traffic within VHF range
Click and swipe to rotate
OVERVIEW
The R450-DG is a professional-grade AIS receiver with an integrated GPS receiver, designed for shoreside monitoring of vessel traffic within VHF range. It decodes all AIS message types, including Class A, Class B, Aids to Navigation, and SARTs, while also providing accurate GPS positioning data alongside the AIS feed.
With both Ethernet and built-in Wi-Fi connectivity, the R450-DG streams AIS and GPS data directly to PCs, servers, or mobile devices over wired or wireless networks. It supports local monitoring, sharing data across a network, or sending AIS and GPS data over the Internet to a fixed IP address for centralised display.
The compact ABS enclosure with carbon-reinforced connector slides is lightweight yet durable, and houses Comar’s proven highsensitivity dual-channel parallel AIS receiver, trusted in professional environments worldwide.
The R450 series is offered in four models to suit different requirements:
Models with a D designation feature an integrated Digi® network module, while X models are equipped with a Lantronix® Xport module, providing flexibility to match existing network infrastructure or preferences. Versions with the G suffix include an internal GPS receiver in addition to AIS reception.
FEATURES
- Professional-grade, dual-channel parallel AIS receiver with integrated GPS receiver
- Decodes all AIS message types: Class A, Class B, Aids to Navigation, SARTs, and more
- Ethernet port for direct connection to PCs, servers, or local networks
- Built-in Wi-Fi for wireless monitoring and streaming to multiple devices
- Supports AP, Station, and AP+STA Wi-Fi modes with TCP/UDP data output
- Rugged ABS housing with carbonreinforced connector slides
- Built-in USB port for local monitoring and configuration
- Ideal for feeding AIS and GPS tracking data to websites or monitoring servers
- Supplied complete with software
APPLICATIONS
- Monitoring of shipping for government and port authorities
- Managing vessel traffic at port approaches
- Supporting search and rescue operations
- Locating vessels for tug and supply operators
- Analysing shipping activity in designated zones
- Monitoring fishing areas
- Feeding AIS & GPS data to vessel tracking websites and services
